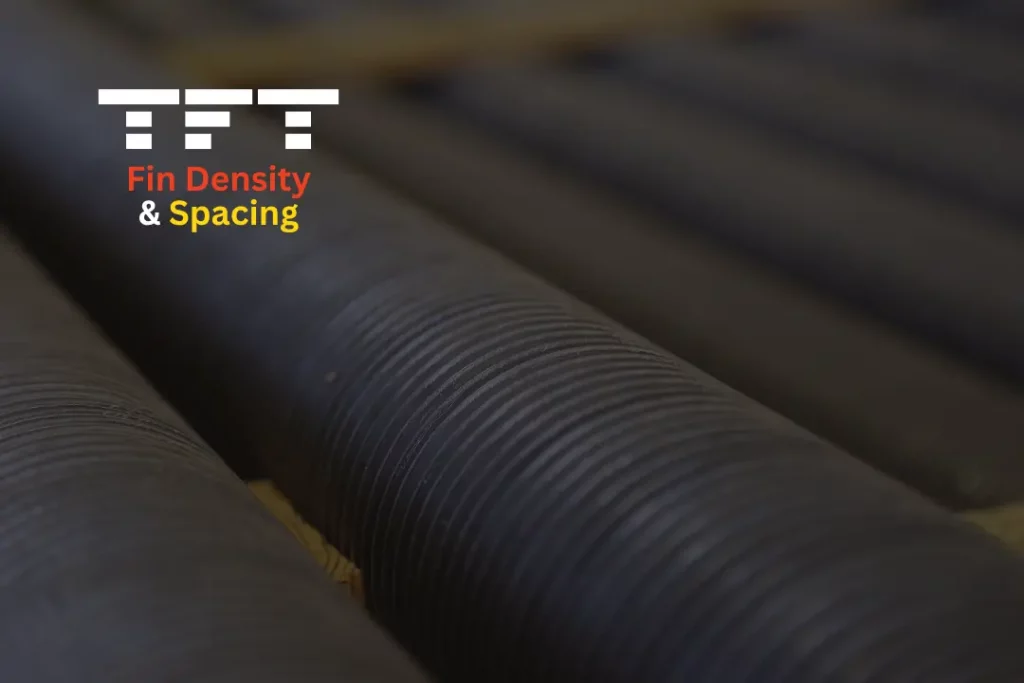

Fin Density and Spacing: How to Get It Right
When engineers think about finned tube performance, they often focus on material and fin profile. But one of the most influential variables is quieter and easy to underestimate: fin density, the number of fins per inch along the tube, and the spacing that results from it. Get fin density right and you extract maximum performance from your heat exchanger. Get it wrong and you can end up fighting excessive pressure drop or chronic fouling that erodes efficiency over time. Here is how fin density and spacing actually affect performance, and how to choose the right balance for your application.
What Fin Density and Spacing Mean
Fin density is simply how many fins are packed into each inch of tube length, usually expressed as fins per inch. Spacing is the flip side of the same coin: the higher the fin density, the tighter the gap between adjacent fins. The two are inseparable, and together they determine how much heat transfer surface the tube carries and how fluid moves across it. Understanding the trade-off between them is the key to a well-designed finned tube.
The Core Trade-Off: Surface Area vs. Flow
More fins per inch means more surface area, and more surface area means more opportunity for heat transfer. So why not simply maximize fin density on every tube? Because packing in more fins comes with two real costs:
Higher Pressure Drop
As fins get closer together, the gaps that fluid must pass through get narrower, which increases resistance to flow. That resistance shows up as pressure drop across the tube bundle, and higher pressure drop means more fan or pump energy is required to move fluid through the system. A tube that transfers heat beautifully but chokes your airflow can end up costing more to operate than it saves. Fin density has to be weighed against the pressure drop your system can tolerate.
Greater Fouling Risk
Tighter fin spacing also makes a tube more prone to fouling in dirty service. When the gaps between fins are narrow, particulate, dust, and deposits are more likely to bridge and build up between the fins rather than passing through. Once fouling takes hold, it insulates the surface, drives efficiency down, and makes cleaning harder. In particulate-laden or otherwise dirty service, wider fin spacing is often the smarter choice even though it reduces raw surface area.
Matching Fin Density to Your Service
The right fin density is not a single ideal number, it is the value that best fits your fluid and operating conditions. A few general principles guide the decision:
- Clean service can support high fin density. When the fluid crossing the fins is clean and low in particulate, tight fin spacing works well. There is little risk of buildup, so you can lean into the extra surface area for maximum heat transfer.
- Dirty or fouling-prone service calls for wider spacing. When the service carries dust, ash, or other particulate, wider fin spacing lets that material pass through instead of accumulating. You trade some surface area for reliable, sustained performance and easier maintenance.
- Pressure drop limits set a ceiling. If your system has a tight pressure drop budget, that constraint may cap how dense your fins can be, regardless of the heat transfer you would like on paper.
- Heat duty sets the target. Your required heat transfer defines how much surface area you need, which fin density then delivers within the limits above.
Fin Density Works Together With Other Variables
Fin density does not act alone. It works alongside fin height, fin thickness, fin profile, and tube arrangement to determine overall performance. Taller fins add surface area without tightening spacing, for example, while a serrated profile can improve heat transfer at a given density by increasing turbulence. The best designs consider these variables together rather than optimizing any single one in isolation. This is where the experience of your finned tube manufacturer becomes valuable, translating your performance targets into a combination of dimensions that actually works.
Why Manufacturing Precision Matters
Choosing the right fin density only pays off if the tube is manufactured to hold that density consistently. Uneven fin spacing, inconsistent fin height, or a weak fin-to-tube bond will undermine even a perfectly specified design. Tulsa Fin Tube operates six high-frequency finning lines, the largest finning capacity in North America, with solid-state technology that maintains consistent process parameters across every production run. That consistency means the fin density you specify is the fin density you receive, tube after tube, with a high-frequency welded bond that preserves thermal contact for the life of the equipment.
Frequently Asked Questions
What is fin density in a finned tube?
Fin density is the number of fins per inch along the length of a finned tube. It determines how much heat transfer surface area the tube carries and, together with fin spacing, how fluid flows across the fins. Fin density is a key factor in balancing heat transfer against pressure drop and fouling.
Does higher fin density always mean better heat transfer?
Not necessarily. Higher fin density adds surface area, but it also increases pressure drop and the risk of fouling in dirty service. If pressure drop or fouling becomes a problem, the practical performance can suffer. The best fin density balances surface area against the flow and cleanliness of your specific service.
What fin spacing is best for dirty or fouling service?
Dirty, particulate-laden, or fouling-prone service generally benefits from wider fin spacing, meaning a lower fin density. Wider gaps allow dust and deposits to pass through rather than building up between the fins, which sustains performance and makes cleaning easier over the life of the equipment.
How do I choose the right fin density for my application?
Match fin density to your heat duty, your allowable pressure drop, and how clean the service is. Clean service with an ample pressure drop budget can support high fin density, while dirty service or tight pressure drop limits call for wider spacing. An experienced manufacturer can help balance these factors.
Design Finned Tubes That Perform, With Expert Guidance
Fin density is a small number with a big impact on how your heat exchanger performs and what it costs to run. Balancing surface area, pressure drop, and fouling resistance is exactly the kind of decision that benefits from manufacturing expertise. If you want help dialing in the right fin density and spacing for your application, the team at Tulsa Fin Tube is here to help. Contact us to discuss your specifications or request a quote.
By Austin Hoose
